Description

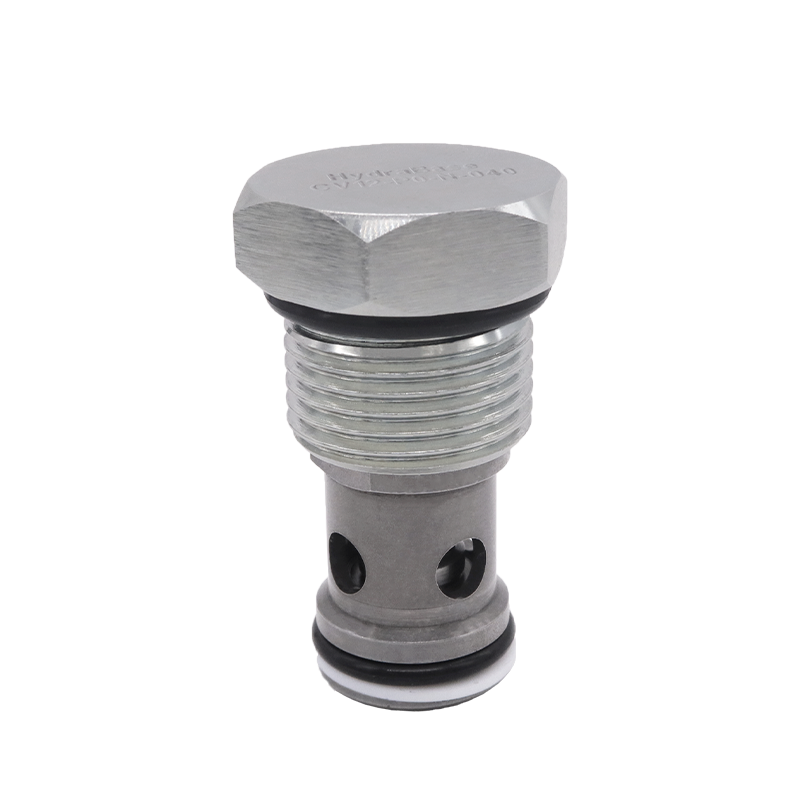

A crew-in，Cartridge-style，hydraulic check valve for blocking or load-holding device.
Technical data
Max. pressure: 250 bar
Max. flow rate: 95L/min
Internal leakage: 0.25 mL/min (5 drops/min) max. at 350 bar.
Fluid: Mineral based or synthetics with lubricating properties at viscosities of 7.4~420 cSt (50-2000 ssu)

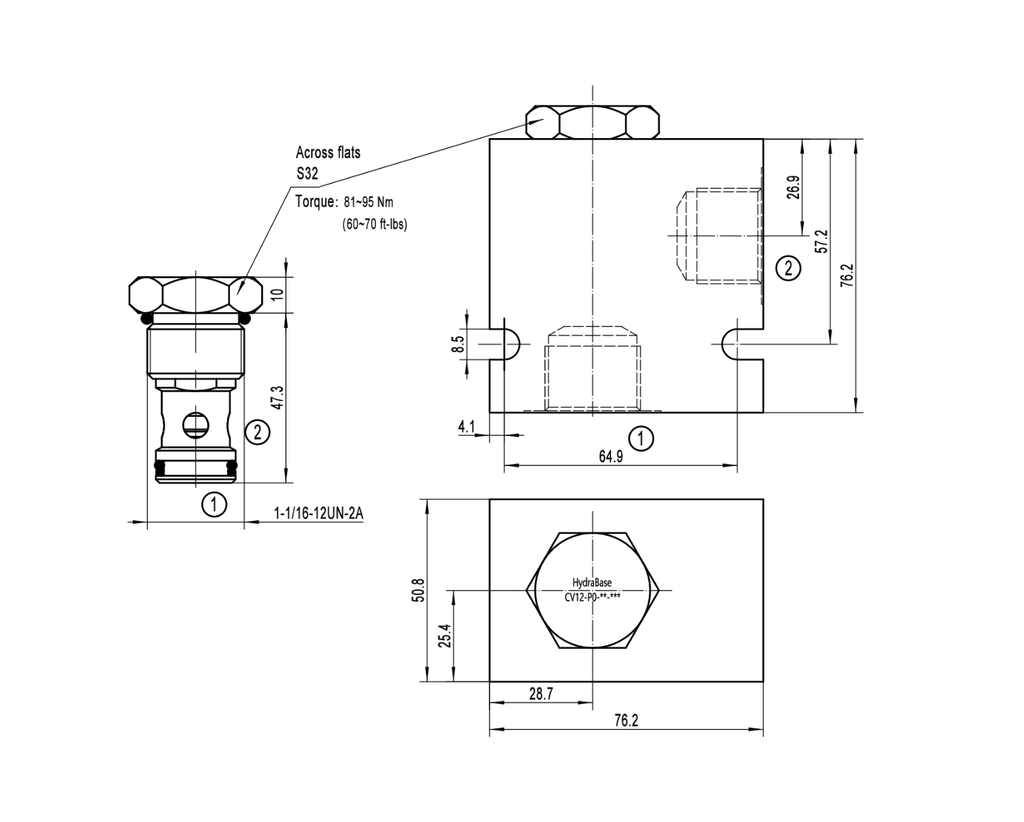

Cavity: VC12-2
Ordering code
