Description

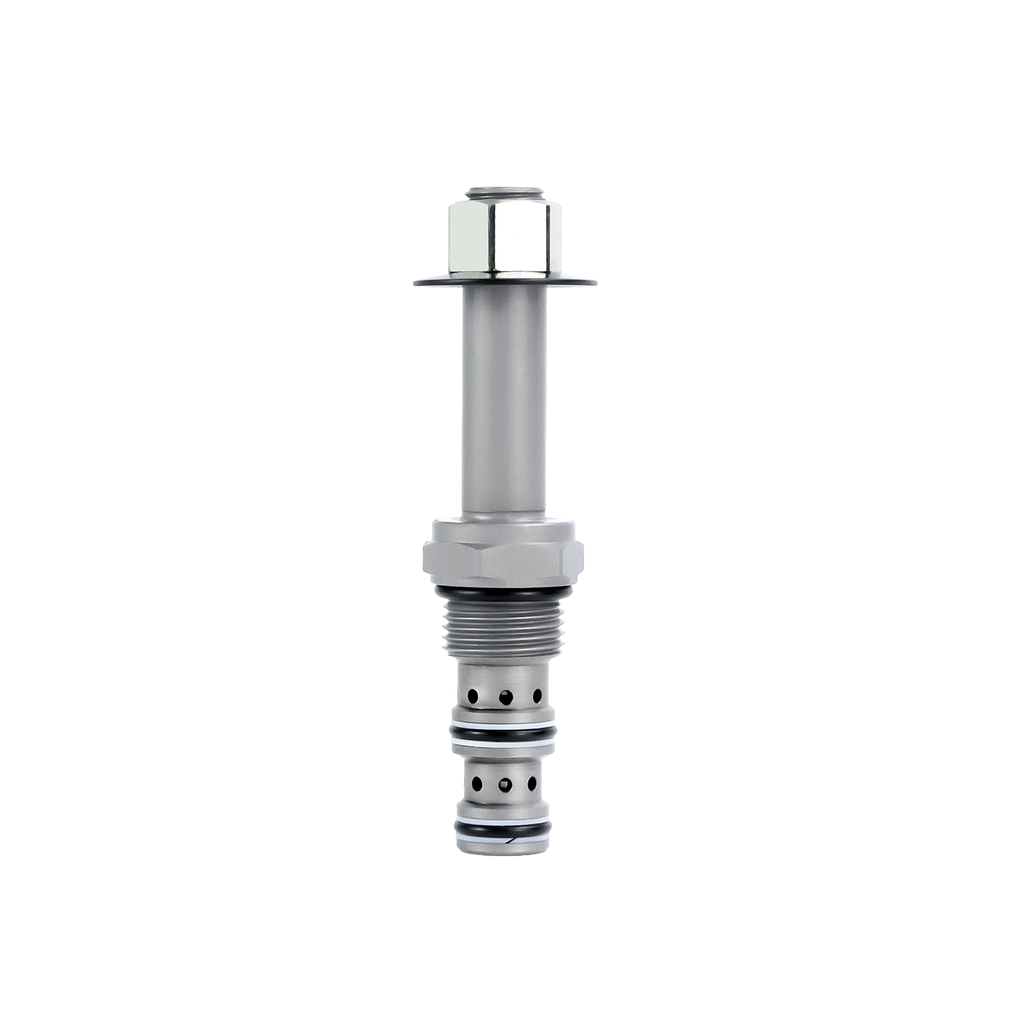

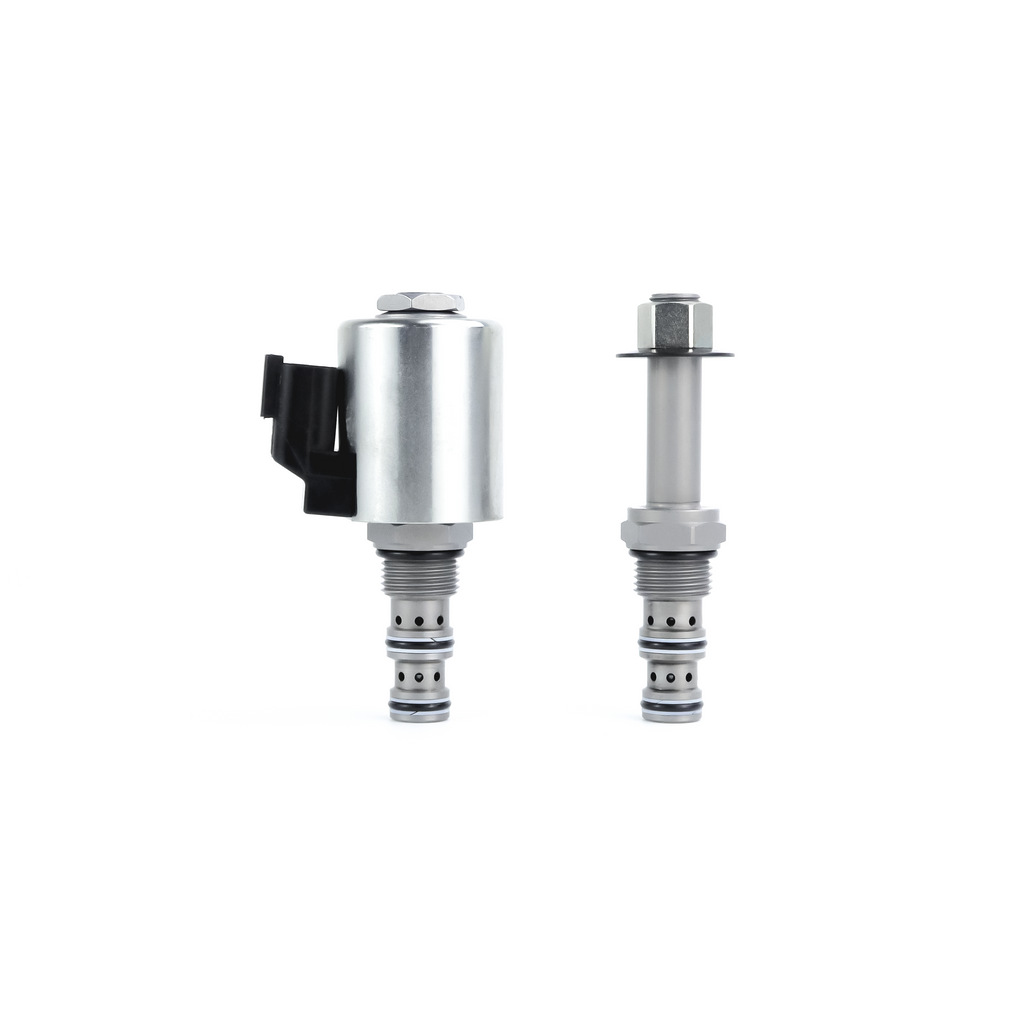

Slenoid operated, 3-way, direct-acting, spool-type, screw-in hydraulic cartridge valve.
Technical Data
Operating pressure: 207 bar (3000 psi)
Proof pressure: 375 bar (5500 psi)
Flow: See performance chart
Internal leakage: 82 mL/min (5.0 cu.in./min) max. at 207 bar (3000 psi)
Ordering Code
